520Y Thermal lamination machine

  • Intelligent temperature control, infrared heating, built in three heating tubes.

  • Electric adjustment of single-sides anti curling function.

  • Frequency conversion speed regulation, 400W gear box deceleration motor.

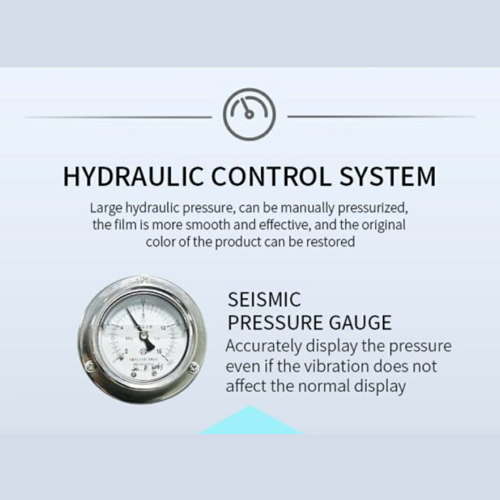

  • Manual pump hydraulic control system, shock proof pressure display table.

  • The synchronous conveyor belt, automatically feeds the paper, and the finishing product is automatically wound.

  • Equipped with trimming cutter and dotted tooth cutter.

  • Equipped with jog-type foot switch, switch is convenient for film channeling.

  • The diameter of the steel roller is 200 mm, and the diameter of the lower rubber roller is 150 mm.

  • The material of the rubber roller adopts imported non stick high temperature resistant silicone rubber.


  • Max. Laminating Width:520 mm
  • Max. Laminating Thickness:6 mm
  • Laminating speed:0~15m/min
  • Lamination:Single side
  • Hot Laminating Temperature:160 degree celsius
  • Display:LED
  • Press Mode:Hydraulic
  • Paper feeding way:Conveyor feed
  • Steel Roller Diameter:200 mm
  • Trimming/Perforating function:YES
  • Anti curling function:YES
  • Automatic winding:YES
  • Power:3900 W
  • Motor Power:400W
  • Power Supply:AC 220V, 50Hz, AC motor
