Book Binding Machine In Chennai
Book Stitching Machine
Product Description:
- Thickness of job adjustable by wheel
- Reversible table for side & centre stitching
- Suitable for stitching of notebooks, books, magazines, currency notes, pamphlet, etc.
- Spare parts are standardized & interchangeable,
- Power operated
| Size of Machine | 5/8” | 1” | 1 ¼ “ |
| Gross Weight | 250 kg | 350 kg | 440 kg |
| Net Weight | 150 kg | 200 kg | 250 kg |
| Space Required | 32”x28” | 32”x28” | 32”x28” |
| Speed | 150 stitches per min | 150 stitches per min | 140 stitches per min |
| Stitching Capacity | 2 sheets to 170 sheets | 2 sheets to 300 sheets | 2 sheets to 340 sheets |
| Motor | 1/2 H.P | 1 H.P | 1 H.P |
Product Description:
- High speed for side and centre stitching Robust, versatile and compact models Adjustable table with excellent finish All parts made of high quality steel
- Stitching Capacity 1mm to 12.5mm Normal & 0.5mm to 3mm Loop Stitching
- Power operated (1 H.P.) Wire: 26 to 20 SWG
| Stitch Speed | 150 X 2 Stitches per Minute |
| Stitching Capacity | 2 to 160 Sheets ( 1mm to 12 mm) |
| Motor | 1 H.P. Single or Three Phase |
| Wire Required | 24 S.W.G. to 20 S.W.G |
| Machine Size | Length: 32″Width: 28″Height: 54″ |
| Weight | Net Weight:200KGs |
Features:
- Servo stabilizer is provided with machine for safety reasons
- High speed stitching head
- Machine is done with paper sensor
- Noiseless & oil free compressor is provided with the machine
- Automatic Stitching gap adjustment
- Long life cutting edge technology
- Notebook sizes programs saving options
- Low sound & oil free conveyor
Features:
- Servo stabilizer is provided with machine for safety reasons
- High speed stitching head
- Machine is done with paper sensor
- Noiseless & oil free compressor is provided with the machine
- Automatic Stitching gap adjustment
- Long life cutting edge technology
- Notebook sizes programs saving options
- Low sound & oil free conveyor
Features:
- Servo stabilizer is provided with machine for safety reasons
- High speed stitching head
- Machine is done with paper sensor
- Noiseless & oil free compressor is provided with the machine
- Automatic Stitching gap adjustment
- Long life cutting edge technology
- Notebook sizes programs saving options
- Low sound & oil free conveyor
Technical Specification:
Electric supply – 220 Ac Single Phase
Machine Weight – 1300kgs
Edge Squaring – 4mm to 16mm
Stitching & Folding Capacity – 2mm to 12mm
Electric Motor Load – 3 KW
Stitching Head Speed – 300 Stitches/min
Output – 1200-2000 / hour
Available Sizes : 75cm, 85cm, 95cm
Features:
• This heavy-duty thread book sewing machine is ideal for sewing large size ledger books, registers and other long books.
• This is a very simple and easy in operation. • The machine is totally risk free.
• It has very good accessibility to all structured units • This machine is a fully maintenance free machine and excellent in production Unique stitch 909:
• Motor: 0.75 kW (1 hp), 1400 rpm. (option for both 1 ph and 3 ph) Unique stitch 909 A
| Model | JC 2000 | JC 2500 | JC 3000 JC 3500 JC 5000 | ||
| Largest Size of book | 18″ x 9″ | 24″ x 9″ | 18″ x 9″ | 24″ x 9″ | 24″ x 13″ |
| Smallest Size of book | 41/2″ x 4″ | 41/2″ x 4″ | 41/2″ x 4″ | 41/2″ x 4″ | 41/2″ x 4″ |
| Number of Stitches | up to 7sets | up to 9 sets | up to 7sets | up to 9sets | up to 9 sets |
| Capacity | 70 Sec./Min | 70 Sec./Min | 70 Sec./Min | 70 Sec./Min | 50 Sec./Min |
| Power Required | 0.5 Hp | 0.5Hp | 0.5Hp | 0.5Hp | 0.5Hp |
Paper Ruling Machine
Product Description:
- Double Sided Double Colour with Stop Attachment, has ball bearing at each roll, Automatic Cutting and Perforating
Attachment also. - Straight Through or Stop Lines are accurate on both sides of paper in one direction in one two or three colours at a time.
- Avoids smearing of ruled sheets with its drying track.
- Rules Straight Through at a speed of eight to ten reams per hour.
- Ruling Machines are so designed that they need almost no maintenance except periodical Lubrication A man a Little experience on paper Ruling Machines will have no difficulty in operating it.
- Available in Sizes: 36” 42”,
| Size | 36″ 900 mm. |
| Type | TWO SIDE -TWO COLOUR- TWO STOP |
| Floor Space | 6′ x 8′ |
| Power | 1 H.P. Single Phase |
| Gross Wt. | 1500 Kgs. |
| Nett Wt. | 1200 Kgs |
Product Description:
Automatic Ruling Machine deliver ruled & flexo printed sheets in cut length as per requirement direct from the paper reel.
Inbuilt Equipment for Best Performance
Web aligner system, Hydraulic disc brake system, Automatic dancing roller system for smooth passing of paper D’Curling system, Sensor on reel stop the machine if paper brake, Heavy duty rotary drum type cutting system4 edge knife, Static unit to remove magnate from paper.
Features
Hi tech and best technology, Heavy duty, long lasting and low maintenance, Paper cutting by timing pulley system, Hard chrome plated and dynamic balanced rollers, Variable speed through drives, Greater speed with superb quality, Electronically engraved anilox roller.
Technical Specification:
| Model | ARI-R3-91 | ARI-R3-104 |
| Machine Size | 91cms. | 104cms. |
| Reel Width | Min 40 cms & Max. 91 cms | Min 36 cms & Max. 104 cms |
| Reel Dia | 120 cms | 120 cms |
| Reel Weight | 700 KGS. Approx. | 800 KGS. Approx. |
| Core Dia | 70 to 110 mm | 70 to 110 mm |
| Color | 2 Flexo & 1 Disc(3 Colour Both Side) | 2 Flexo & 1 Disc(3 Colour Both Side) |
| Ruling-printing Width | 90 cms. | 102 cms. |
| Cutting Length | 300 to 450 mm (Variation 5 mm) 450 to 880 mm (Variation 10 mm) | 300 to 450 mm (Variation 5 mm) 450 to 880 mm (Variation 10 mm) |
| Production | 250 mtrs. Per Min. | 250 mtrs. Per Min. |
| Stack Height | 160 cms / 28 reams | 160 cms / 28 reams |
| Power Required | 12.75 H.P. | 12.75 H.P. |
| Floor Space | Length : 37’ Width : 17’ Height : 1 0’ | Length : 37’ Width : 17’ 71’ Height : 1 0’ |
| Net Weight | 8000 Kgs. Approx. | 9000 Kgs. Approx. |
| Model | ECO-R1 -91 | ARI-R2-91 |
| Machine Size | 91cms. | 104cms. |
| Reel Width | Min 40 cms & Max. 91 cms | Min 36 cms & Max. 104 cms |
| Reel Dia | 120 cms | 120 cms |
| Reel Weight | 700 KGS. Approx. | 700 KGS. Approx. |
| Core Dia | 70 to 110 mm | 70 to 110 mm |
| Color | 2 Flexo & 1 Disc(3 Colour Both Side) | 2 Flexo & 1 Disc(3 Colour Both Side) |
| Ruling-printing Width | 90 cms. | 91 cms. |
| Cutting Length | 300 to 450 mm (Variation 5 mm) 450 to 880 mm (Variation 10 mm) | 300 to 450 mm (Variation 5 mm) 450 to 880 mm (Variation 10 mm) |
| Production | 125 mtrs. Per Min. | 125 mtrs. Per Min. |
| Stack Height | 160 cms / 28 reams | 160 cms / 28 reams |
| Power Required | 3 HP+3HP+1 HP+0.75HP | 10.25 HP |
| Floor Space | Length : 22’ Width : 6’8” Height : 6’8” | Length : 28’ Width : 7’9” Height : 7’9” |
| Net Weight | 5000 Kgs. Approx. | 7000 Kgs. Approx. |
- Less power consumption.
- Long service life.
- Hassle free operations.
Technical Specification:
| Book Width | 700mm | 800mm | 900mm | 1000mm |
| Book Spine | 5mm-70mm | 5mm-70mm | 5mm-50mm | 5mm-50mm |
| Book Height | 100 | 100 | 100 | 100 |
| System clamp pressure | 10 ton | 10 ton | 10 ton | 10 ton |
| Squaring Pressure | 3500 kgs | 3500 kgs | 3500 kgs | 3500 kgs |
| Hydraulic Oil Capacity | 80 ltr | 90 ltr | 100 ltr | 100 ltr |
| Electrical Load/Motor | 3 H.P | 3 H.P | 3 H.P | 3 H.P |
| Electrical Supply | 400/440 AC 50Hz | 400/440 AC 50 Hz | 400/440 AC 50 Hz | 400/440 AC 50Hz |
Dimensions(WxDxH ) | 107x106x96 cm | 117x106x96 cm | 127x106x96 cm | 137x106x96 cm |
| Net Weight/Gross | 900/1100 Kgs | 1000/1200 Kgs | 1100/1300 kgs | 1200/1400 kgs |
Binding Stations:
Clamping of book easily adjustable & uniform pressure on each book
Back Milling Station:
Powerful milling section with notching tools. The height adjustable roughening teeth ensure effective exposure of the paper fibre. Depth of back milling cutter can be increased or decreased. Milling could be avoided for thread sewn books
Nipping Station:
Nipping station presses the spine & sides of the book with motorized forward & reverse mechanism. The duration of nipping applied pressure is determined by timer. Nipping on time & delivery duration are adjustable & controlled by timer.
Hot Melt Gluing Station:
Hot melt roller application system equipped with roller & scrapper mechanism, the glue film thickness is controlled by adjustable doctor blades.
| Speed | 480 Books per hour | 480 Books per hour | 480 Books per hour |
| Spine Size | 2mm to 70mm | 2mm to 70mm | 2mm to 70mm |
| Spine length | 300mm | 450mm | 600mm |
| Power Load/Starting Load | 5.75 KW | 5.75 KW | 5.75 KW |
| Running Load with Cutter | 3.5 KW | 3.5 KW | 3.5 KW |
| Heater | 2 KW | 2 KW | 2 KW |
| Adhesive | Hot Melt Adhesive | Hot Melt Adhesive | Hot Melt Adhesive |
| Products information: | |
| Max. Drilling Thickness : | 40mm |
| Max. Central Distance : | 180mm |
| Diameter of Holes : | 2 – 8mm |
| Speed : | 2800R/min |
| Main Motor : | 220V 50Hz, 0.25 Kw |
| Weight : | 30 Kgs |
| Dimension : | 480*420*560mm |
Book Press Machine
Details :
| Machine | Size |
| Manual Book Press Machine | 10×15″ |
| Manual Book Press Machine | 15×20″ |
| Motorized Book Press Machine | 15×20″ |
| Motorized Book Press Machine | 20×30″ |
Hydraulic Book Press Machine
Technical Specification:
Independent Plate size :15”x20” each
Combined Single Plate size : 20”x30”
Pile Height (Adjustable) : 18”(max)
SystemClamp Pressure each : 6000Kg
Electric load /motor : 3 HP
Electric supply : 400/440V AC
Overall Dimension (WXDXH) : 107Wx80Dx168H CM
Packing Case Size :193CMx127CMx101CM
Weight : 700KG
Product Description:
- Twin Cylinder Bookbinders Press Hydraulic the options available for use are:
- Independent control through mode switch for left & right hand side platens through mode position 1.
- By selecting the 2nd positions the stations will operate in tandem to a pre-set duration in Auto mode.
- In position 1 & 2 both the platens will move up simultaneously with combined force of
12.5 tons. Optionally Single plate in the size 15″ x 20″ inch can be supplied for pressing Book, Accounts books & Book cases which are larger than 30″ x 20″ inch.
Book Joint Forming Machine
Features:
The books are presses immediately after casing in and the joint is burnt in at the same time pressure and temperature of the joint bars can be adapted to the binding material. Therefore, the joint is formed extremely well and receives a perfect and permanent shape.
- Adjustable depth on joint
- Heated formers for perfect joint
- Inter changeable guides for various
| Description | Unit | Pneumatic | Hydraulic |
| Book Thickness | mm | 8-100 | 4-95 |
| Book Size | mm | L 480 x W 630 | L 100 x W 490 |
| Dimension | mm | 715(L) x 630(W) x 1165(H) | 760 (l) x 685 (W) x 1360 (H) |
| Power | 1.5kw,220 VAC | 2kw,440 VAC | |
| Pressure | kgs | Pneumatic | Hydraulic |
| Weight | kgs | 105 | 950 |
JC MACHINERY
PRINTING AND PACKAGING MACHINERY MANUFACTURER AND SUPPLIERS

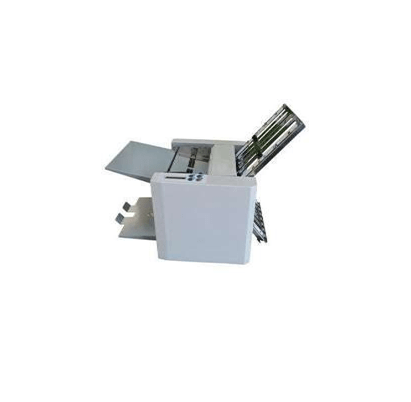

Technical Specification (A4 Paper Folding Machine) :
Speed(A4/Hour/Hingle Fold) : 6000
Max Sheet Size : 230x50mm
Min Sheet Size : 50x70mm
Folding Plates : 2
Types of Foldes : 6
Fold adjustment manual
Size : 835x430x420mm
Weight : 21Kg

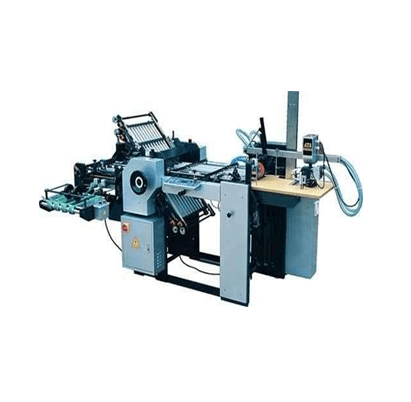

Technical Specification (Fully Automatic Paper Folding Machine):
- Max Sheet Size : 60cmx91cm
- Min Sheet Size : 30cmx45cm
- Power : 5.3Kw
- Parallel Fold : Two
- Cross Fold :Three
- Feeder Mode : Automatic Rotary suction pile feeder

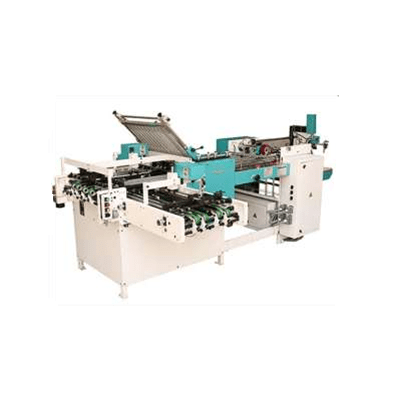

Technical Specification (Semi Automatic Paper Folding Machine):
- Max Sheet Size : 860x830mm
- Min Sheet Size : 400x350mm
- Speed : Max 18 to200 Sheets/min
- Power : 2.5HP/3Phase/440V
- Weight : 1700 Kg
- Folding capacity : 2to12Sheet
Feature:
Forming different wires to the spiral and binding onto the book at the same time. Through mold and tooth pitch can run different specified requirements.
Book Binding and wire forming finished at the same time, convenience and efficiency. After book binding complete both ends can cutoff and lose up automatically.
Books auto drop unto the collection tank after binding is complete, operator only leads it to the orientation.
Up to 3 seconds per book max speed.
It is perfect high-speed spiral binding machine. This machine is used for broad binding of notebook, exercise book, hang calendar, desktop calendar, loose-leaf etc.
| Wire Manufacturing Specification | ¼”-1” |
| Maximum Thickness Binding | 20mm |
| Maximum Binding Width | 450mm |
| Minimum Binding Width | 100mm |
| Working Speed n/hour | 700-1300P |
| Power Supply | 220v/1 ph/50H |
| Machine Dimension | 800mm*140mm*200mm |
| Machine Weight | 238KG |
Feature:
- The operation of the machine is very simple and change-over times to other jobs are extremely short.
- The wire is fed from a coil or spool and straightened by special tools and is guided to the cooling tool where the spiral is formed automatically.
- The formed spiral can be then cut off manually by means of cutting device. The machine is easy to operate with the help of semi-skilled labor.
- A variable speed PMDC motor with drive is supplied as a standard equipment.
- No special tools are required for varying the diameter and pitch of the formed spiral.
| Maximum Length of Spiral | 75 cm |
| Power Supply | 230 VAC,1 ph,50Hz |
| Motor | 0.37 KW,PMDC |
