Platen Punching Machine

Platen Punching Machine In Chennai

Platen Die Punching Machine

Standard Feature:

Punching machine is designed for Die cutting, Creasing and Embossing on paper, Card Board, Corrugated Board, Leather, Plastic, Materials etc. All bushes are from Phosphorous Bronze Metal. All bearings are of SKF/NBC only. Main electrical panel (operation and control) are equipped with international standardized components. Main flywheel is locked with chestnuts system.

Automatic centralized lubrication system is provided. Quick and simple adjustments of impression are made through two eccentric bushes. Pressure adjustable through impression adjustment. The set value of impression can be easily read on scale. The timing device can be set to give a variable period from one to ten seconds. During this time the moving block remains stationery in the open position automatically resuming motion at the end. Electro-Magnetic clutch and brake

Technical Specification:

Inside Chase	20”x26”	22”x32”	25”x37”	32”x42”	37”x51”	42”x62”	52”x72”
Size Of Platen	23”x29”	25”x35”	28”x40”	35”x45”	40”x54”	46”x66”	56”x76”
Power Required	3 H.P.	3 H.P.	5 H.P.	7.5 H.P.	7.5 H.P.	10 H.P.	15 H.P.
Impression/Hr	1700	1500	1300	1200	1000	950	800
Net. Weight	2.6 Ton	3.2 Ton	4 Ton	5.4 Ton	6.8 Ton	9 Ton	12 Ton
Floor Space	68”x57”	74”x65”	82”x67”	86”x78”	90”x82”	95”x93”	105”x103”

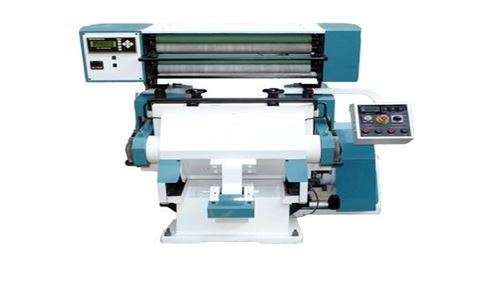

Platen Die Punching Machine with Hot foil

Standard Feature:

Technical Specification:

Inside Chase	20”x26”	22”x32”	25”x37”	32”x42”	37”x51”	42”x62”	52”x72”
Size Of Platen	23”x29”	25”x35”	28”x40”	35”x45”	40”x54”	46”x66”	56”x76”
Power Required	3 H.P.	3 H.P.	5 H.P.	7.5 H.P.	7.5 H.P.	10 H.P.	15 H.P.
Impression/Hr	1700	1500	1300	1200	1000	950	800
Net Weight	2.6 Ton	3.2 Ton	4 Ton	5.4 Ton	6.8 Ton	9 Ton	12 Ton
Floor Space	68”x57”	74”x65”	82”x67”	86”x78”	90”x82”	95”x93”	105”x103”

Hot Foil Stamping Attachment:

Model	Speed	Power	Heater Plate
15×20	1500 IPH	2 HP	2.5 KW
17×23	1500IPH	3HP	3.5 KW
