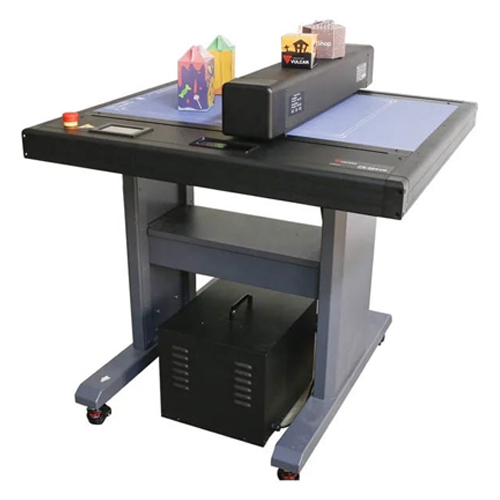

Vulcan 500 Digital Die Cutting Flatbed

    • Camera system
    • USB flash disk
    • Qrcode
    • Precision
    • Touch screen
    • Network interface
    • New feature for
    • contour cutting
    • Windows & Mac
  • Item:FC-500VC
  • Configuration:Digital servo system, Flatbed
  • Media hold-down method:Vaccum suction
  • Maximum cutting speed:700 mm/s (10 to 700 mm/s )
  • Cutting pressure:Tool 1: Max. 5.88 N (600 gf)
  • :Tool 2: Max. 5.88 N (600 gf)
  • Minimum character size:Approx. 5 mm square
  • Mechanical resolution:0.005 mm (5µm)
  • Programmable resolution:HP-GL: 0.025 mm
  • Repeatability:Max 0.1mm
  • Standard interfaces:USB2.0 (Full Speed) / U-Flash / Ethernet
  • Memory:32MB
  • Command sets:HP-GL
  • Number of tools:2 tools
  • Tool types:Cutter blade / Pen / Creasing
  • Operating screen:4.3-inch touch LCD
