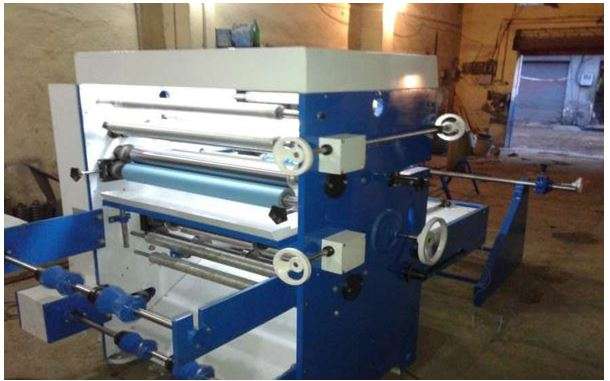

Lamination Machine In Chennai
Standard Feature:
- AC Motor (Kirloskar make) with speed reduction gear box
- variable speed drive electric control panel with AC drive controller.
- Duplex unwind station for plain lamination laterally micro adjustable up to 100 mm
- Coating station SS 304 gum tray with worm wheel
- U/D system for plain lamination.
- Heavy duty rewinding station with felt clutch mounted on ball bearing.
- Film sleeting device & perforation device on main unwind station.
- Stock range 70~450 gsm paper or board for plain lamination. Line speed 0~50 mts/minute.
- Dancing roller with wrinkle removal break banana rod 1 reel cutting stand, carbon steel gear.
Technical Data:
| Size | 24” | 32” | 36” | 42” | 48” | 52” |
| Maximum speed | 1800 ft. | 1500 ft. | 1500 ft. | 1500 ft. | 1500 ft | 1200 ft |
| Power required | 1.5 H. P | 2 H.P | 3 H.P. | 3 H.P. | 4H.P | 4 H.P |
| Net Weight | 1.0 Ton | 1.2 Ton | 1.4 Ton | 1.6 Ton | 1.8 Ton | 2.0 Ton |
Standard Feature:
- Hard chrome Rollers, Liver, Brake for wrinkle free
- Lamination Machine available in Plain & Window cum Plain
- We use polyester, BOPP, PVC, Golden and silver film to laminate Boxes, Title covers, Sweet Boxes, Aluminium foiled plates and other
- Variable speed control
.
Technical Data:
| Size | 24” | 32” | 36” | 42” | 48” | 52” |
| Maximum speed | 1800 ft. | 1500 ft. | 1500 ft. | 1500 ft. | 1500 ft | 1200 ft |
| Power required | 1.5 H. P | 2 H.P | 3 H.P. | 3 H.P. | 4H.P | 4 H.P |
| Net Weight | 1.0 Ton | 1.2 Ton | 1.4 Ton | 1.6 Ton | 1.8 Ton | 2.0 Ton |
Features:
- Machine with Diamond polished cylinder.
- Highly polished chromed lamination roller.
- Oil heating system with PID digital controlled upto 120 C for thermal lamination.
- Manual feeding with 8 nos. belt with advance belt adjustment system film sleeting device & perforation device on main unwind station.
- Machine heater with 1.5 kw.
- Machine with 1.5 Hp motor.
- AC Motor (Kirloskar make) with speed reduction gear box variable speed drive electric control panel with AC drive controller.
- Machine with raytek sensor. ( Shows exact current temperature of Cylinder )
- Machine with digital temperature.
- Machine with Hydraulic pressure. (for even & wrinkle free lamination )
- Heavy duty reel attachment upto 700kgs.
.
Technical Data:
| Size | 18” | 24” | 32” | 36” | 42” |
| Speed | 1800ft/hr | 1800 ft/hr | 1500 ft/hr | 1500 ft/hr | 1500 ft/hr |
| Temperature | 90-130oC | 90-130oC | 90-130oC | 90-130oC | 90-130oC |
| Power | 1.5 Hp | 1.5 H.P | 2 H.P | 3 H.P | 3 H.p |
| Weight | 1000kg | 1200 kg | 1400 kg | 1600 kg | 1800 kg |
Features:
- 255 mm dia highly polished chromed lamination roller. 0
- 3 kw electric / oil heating system with PID digital controlled up to 120 C for thermal
- Automatic hydraulically pressure, 5~60 bar to high quality thermal lamination finishing and manual pressure for below 90 gsm paper for plain
- Duplex unwind station laterally micro adjustable up to 100
- Water base lamination coating station SS 304 gum tray with worm wheel, U/D
- Heavy duty rewinding station with felt clutch mounted on ball
- Aluminium feed table (special anodized finish) with feeding
- Manual feeding with 8 nos. belt with advance belt adjustment system film sleeting device & perforation device on main unwind station. Standard Size 24”, 32”, 36”, 42”, 48”.
Technical Specifications :
| Size | 24” | 32” | 36” | 42” | 48” |
| Speed | 1800 ft/hr | 1500 ft/hr | 1500 ft/hr | 1500 ft/hr | 1500 ft/hr |
| Power | 1.5 H.P | 2 H.P | 3 H.P | 3 H.p | 4 H.P |
| Weight | 1200 kg | 1400 kg | 1600 kg | 1800 kg | 2000kg |
Features:
- AC Motor (Kirloskar make) with Speed reduction gear box variable speed drive electric control panel with AC drive controller.
- Duplex unwind station for plain/window lamination and strip gumming laterally micro adjustable up to 100 mm.
- Individual coating station with SS 304 gum tray with worm wheel, U/D system for Plain / Window Lamination and Strip gumming.
- Duplex heavy duty rewinding station with felt clutch mounted on ball bearing.
- Manual feeding with 5-8 nos. belt with advance belt adjustment system.
- Film sleeting device & perforation device on main unwind station.
- Stock range 70~450gsm Paper or Board for Plain Lamination & and 80~450 gsm Strip gumming.
- 4 no. rubber roller: size 55 mm 3nos. 80 mm 1 nos. 4 set strip guide holder, 3 no. nylon wheel with 8 nos. paper guiding gauge.
- 8 nos. side gum cutting holder with Mayar bar gum finishing system.
- Drum heating roller with thermostat controlled.
- Dancing roller with wrinkle removal break banana rod, reel cutting stand carbon steel gear.
Technical Specification:
- Heater : 1.5Kw
- Standard size : MM 600 800 900
- Inches : 24” , 32” ,36”
- Motor : 1 HP
Standard Feature:
- AC Motor (Kirloskar make) with speed reduction gear box
- Variable speed drive electric control panel with AC drive controller.
- Duplex unwind station for plain lamination laterally micro adjustable up to 100 mm.
- Coating station SS 304 gum tray with worm wheel,
- U/D system for plain lamination.
- Heavy duty rewinding station with felt clutch mounted on ball bearing.
- Film sleeting device & perforation device on main unwind station.
- Stock range 70~450 gsm paper or board for plain lamination.
- Line speed 0~50 mts/minute.
- Dancing roller with wrinkle removal break banana rod 1 reel cutting stand, carbon steel gear.
Technical Data:
| Size | 24” | 32” | 36” | 42” | 48” | 52” |
| Maximum speed | 1800 ft. | 1500 ft. | 1500 ft. | 1500 ft. | 1500 ft | 1200 ft |
| Power required | 1.5 H. P | 2 H.P | 3 H.P. | 3 H.P. | 4H.P | 4 H.P |
| Net Weight | 1.2 Ton | 1.4 Ton | 1.6 Ton | 1.8 Ton | 2.1 Ton | 2.3 Ton |
Standard Feature:
- AC Motor (Kirloskar make) with speed reduction gear box variable speed drive electric
- control panel with AC drive controller.
- Duplex unwind station for plain lamination laterally micro adjustable up to 100 mm
- Coating station SS 304 gum tray with worm wheel
- U/D system for plain lamination.
- Heavy duty rewinding station with felt clutch mounted on ball bearing.
- Film sleeting device & perforation device on main unwind station.
- Stock range 70~450 gsm paper or board for plain lamination. Line speed 0~50 mts/minute.
- Dancing roller with wrinkle removal break banana rod 1 reel cutting stand, carbon steel gear.
Technical Data:
| Size | 24” | 36” | 42” |
| Maximum speed | 1800 ft. | 1500 ft. | 1500 ft. |
| Power required | 1.5 H. P | 3 H.P. | 3 H.P. |
| Net Weight | 1.0 Ton | 1.4 Ton | 1.6 Ton |
Features :
- Machine with Diamond polishes roller.
- Rubber rollers are neoprene rubber.
- Machine heater with 1.5 kw.
- Machine with 1.5 Hp motor.
- Machine with raytek sensor. ( Shows exact current temperature of Cylinder )
- Machine with digital temperature.
- Machine with Hydraulic pressure.
Specification :
- Machine weight : 1500 kg
- Feeding size : 24 “ ( 60 cm )
- Machine Speed : 550 meter / min .
Technical Data:
| Size | 24” | 36” | 42” |
| Speed | 1800 ft/hr | 1500 ft/hr | 1500 ft/hr |
| Temperature | 90-130oC | 90-130oC | 90-130oC |
| Power | 1.5 H.P | 3 H.P | 3 H.p |
| Weight | 1200 kg | 1600 kg | 1800 kg |
Use and Characteristics:
- Localization bottom never go beyond, suitable for laminating the paperboard together and for laminating the paperboard with the A/B/C/D/E corrugated cardboard together.
- Bottom paper and face paper can fore-and-art adjustment, easy to laminate together.
- Feeding glue system are automatically controlled by liquid relay, thickness of glue can adjust. Gluing uniformity, lower glue cost.
- Control panel, electromagnetism clutch without touch point relay, position is monitored by photoelectric switch, digital automatic counter.
- High precision laminate, the finished products are of smooth surface edge and of high intensity.
- Whole structure is compact, with beautiful appearances and high work efficiency.
| Technical parameters: | ||||
| Parameter | Unit | 1300 | 1450 | 1600 |
| Max. size | Mm | 1300 x 1100 | 1450 x 1100 | 1600 x 1100 |
| Min. size | Mm | 350 x 350 | 350 x 350 | 350 x 350 |
| Laminate Precision | Mm | ≤±1.5 | ≤±1.5 | ≤±1.5 |
| Speed | m/min | 80 | 80 | 80 |
| Total power | Kw | 5 | 5 | 5 |
| Length | M | 8 x2 x 1.3 | 8 x2.2 x 1.3 | 8 x2.4x 1.3 |
| Total weight | Ton | 4.5 | 5.5 | 6.5 |
Features:
- 255 mm dia highly polished chromed lamination roller. 0
- 3 kw electric / oil heating system with PID digital controlled up to 120 C for thermal
- Automatic hydraulically pressure, 5~60 bar to high quality thermal lamination finishing and manual pressure for below 90 gsm paper for plain
- Duplex unwind station laterally micro adjustable up to 100
- Water base lamination coating station SS 304 gum tray with worm wheel, U/D
- Heavy duty rewinding station with felt clutch mounted on ball
- Aluminium feed table (special anodized finish) with feeding
- Manual feeding with 8 nos. belt with advance belt adjustment system film sleeting device & perforation device on main unwind station. Standard Size 24”, 32”, 36”, 42”, 48”.
Technical Specifications :
| Size | 24” | 36” | 42” |
| Speed | 1800 ft/hr | 1500 ft/hr | 1500 ft/hr |
| Power | 1.5 H.P | 3 H.P | 3 H.p |
| Weight | 1200 kg | 1600 kg | 1800 kg |
Use and Characteristics:
- Kick-feeding model automatic flute laminator.
- Main electrical appliance and computer control part are imported brand mode in Japan and Germany.
- Adopt liquid level control system automatic supply glue and equipped with glue recycling system, the glued quantity can depend on the different requirement of paper adjust and make the glue and coat on the paper.
- Used in printing and packing industry to paste the corrugated paper when the machine is running in the high speed to work normally with A,B,C,D,E,F,N flute.
| Technical parameters: | ||||
| Parameter | Unit | 1300 | 1450 | 1600 |
| Max. size | Mm | 1300 x 1100 | 1450 x 1100 | 1600 x 1100 |
| Min. size | Mm | 350 x 350 | 350 x 350 | 350 x 350 |
| Laminate Precision | Mm | ≤±1.5 | ≤±1.5 | ≤±1.5 |
| Speed | m/min | 100 | 100 | 100 |
| Total power | Kw | 12 | 12 | 12 |
| Length | M | 12.5 x2.15 x 2.6 | 12.5 x2.30 x 2.6 | 12.5 x2.45 x 2.6 |
| Total weight | Ton | 6.8 | 7.2 | 8.0 |
